Location:Homepage / Broadcast TV
Broadcast TV

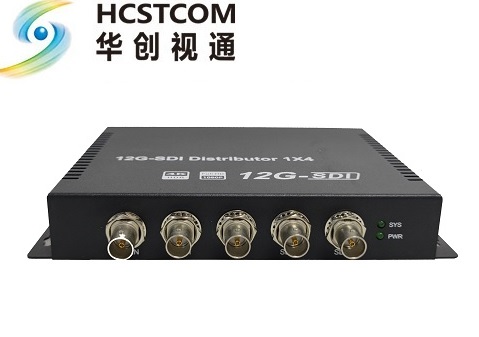

12G-SDI Distributor Amplifier 1X4

12G-SDI Distributor Amplifier 1X4,4K-SDI Distributor Amplifier

12G-SDI Distributor Amplifier 1X4,,4K-SDI Distributor Amplifier

  • Product Introduction
  • 1. Product introduction:

    The HC104-4K-SDI splitter developed and produced by HCST is a 12G-SDI signal 1 to 4 splitter developed in accordance with the requirements of broadcast-level indicators; it optimizes and amplifies your video, and the advanced technology solves the video jitter problem.This product is suitable for applications in the audio and video industry, video conferencing, and indoor and outdoor studios in the radio and television industry.


    2. Product features:

    Support 12G-SDI signal, 1 input and 4 output;

    Support 12G/6G/3G/HD/SD-SDI video with embedded audio;

    Automatic detection of input signals, no need to install any driver settings;

    Provide better video effects and reduce video jitter issues;

    LED indication signal lock, power input;

    Support single desktop use, easy to install;

    Support 4U card dual power supply chassis, 16 inputs and 64 outputs;


    3. Technical parameters:

    input/output



    Input: 1 x BNC
    Output: 4 x BNC


    Video format

    3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50, 720p: 60/59.94/50
    525i59.94 NTSC, 625i50 PAL

    Video processing


    SD/HD/3G/6G/12G-SDI

    Video bandwidth



    11.88Gpbs & 11.88/1.001Gbps


    Audio

    Support SDI embedded audio


    Power supply

    12V DC Jack


    size

    150 x 120 x 28 mm

    Weight

    0.5 kg


    Operating temperature

    0~50 °C
